About 850 OBD-II

This app is mainly for P80 Volvos of years 1996-00 with ELM327 bluetooth/Wifi/USB dongle to diagnose and even program little bit. Exceeding usual standard OBDII capabilities (ex. Pxxx codes not being there in case of fault) to read individual modules directly to help diagnose problems.

Now even some P2 functionality! ( 2000-201x years! )

>>>Please check website for latest and more information<<> Advanced commands.

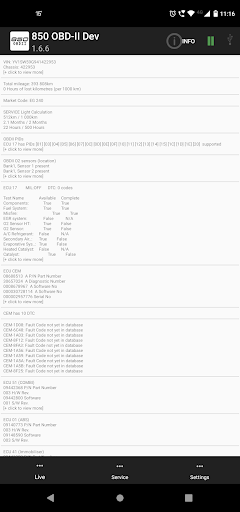

-Read some basic standard OBDII stuff via Scan(P0* -codes, MIL light status, Supported PIDs – refer for Live).

Live (scrolling values):
+COMBI
+ABS
+SRS (airbag)
+Instrument panel (COMBI)
+AW 50-42 / AW 30-43 (Automatic Gearbox)

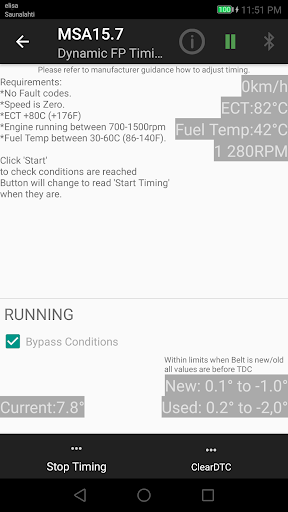

+MSA15.7
+Motronic 4.4
+ME7 (CAN)
+Immobilizer
+ECC

-Read and translate most Volvo specific DTC:s.
Fault Codes supported fully from:
+MSA15.7 (only with D5252T engines!)
+AW 50-42 / AW 30-43
+COMBI
+VGLA
+912-D Heater
+ECC (only S40/V40, C70/S70/V70/XC70)
+IMMO
+EMS2000
+RTI
+Powerseats
+SRS (1996-2000 models)
+DENSO
+CAB (CCU)
+ROPS (Roll Over Protection)

Component test (Activation):
+Motronic (M4.4)
-Injectors
-Engine Cooling Fans
-IAC Valve
-Fuel Pump Relay

Please refer website information as its most updated!

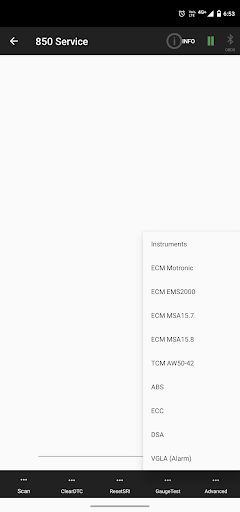

-You can use this App too as a terminal for ELM327 to send individual hand written commands at Service screen for what ever you want and supports multiple command sent at once. Please read ( i ) – button to check how in app .

==============

There will be some errors/bugs as i can test things mostly on my own Volvo and or bench. So when you send that log to me via email (via settings) i look what i can do!

Will be updated based on feedback.
Thanks for your support! I hope this will be useful and i will make it even more useful by time!

I don´t take any responsibility what this app can cause by using it or while using it.
I don´t warrant any things this app says. Many are just best guess by study and will be fixed as noted.
App doesn’t have any tracking of users (location permission asked due because of bluetooth permissions*) only what Google Play Store does itself(counting etc).

*To access the hardware identifiers of nearby external devices via Bluetooth — scans, your app must now have the ACCESS_FINE_LOCATION or ACCESS_COARSE_LOCATION permissions

*To have Wifi support needed to have next permissions; CHANGE_WIFI_STATE and android.permission.INTERNET.

Made in Finland
– Sincerely Aleksi Venäläinen
