Hondash is the most capable monitoring tool and virtual dash for Honda (OBD1, OBD2A, OBD2B), compatible with:

– Hondash OBD Bluetooth scanner for ’92 – ’01 models that use the proprietary 3 pin or 5 pin diagnostic connector (can be purchased at http://www.hondash.net)

– Hondata (S300, KPro, FlashPRo), all ECU versions with a Bluetooth transmitter

– HTS – eCtune via an internally installed Bluetooth module

App features:

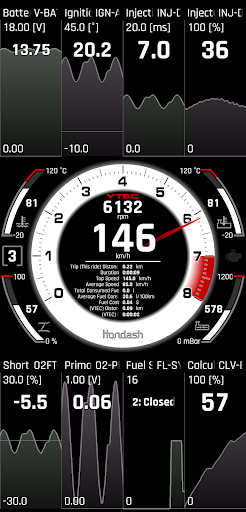

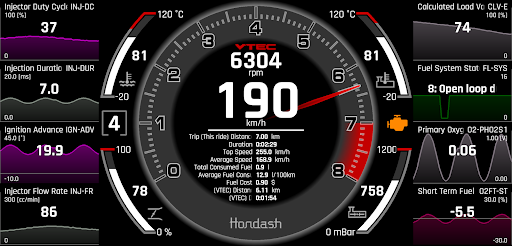

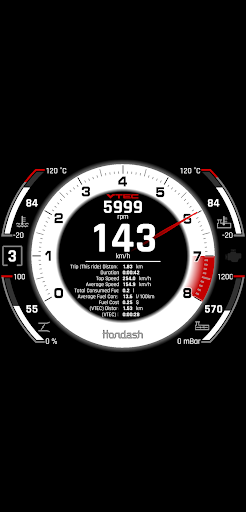

– real-time digital dash

– fuel statistics – instantaneous and average fuel consumption, total consumed fuel and cost

– configurable multiple trip monitors for keeping record of various statistics such as fuel consumption, trip time, distance, VTEC engaged distance, top and average speed, etc.

– real-time parameter values:
vehicle speed, engine speed – revs, engine idle speed commanded, engine coolant temperature, intake air temperature, manifold absolute pressure, baro pressure, throttle position, battery voltage, oxygen sensor voltage, alternator FR, electrical load detector, exhaust gas recirculation EGR, short / long term fuel trim, injection duration, ignition advance, idle air control valve, knock, fuel system status, calculated load value
two-state values:
starter switch, A/C switch, A/C clutch relay, P/S oil pressure switch, brake switch, VTEC pressure switch, VTEC valve, VTEC indication lamp, A/T gear position, service check, fuel pump relay, oxygen sensor heater, oxygen sensor feedback loop status, EVAP purge control, malfunction indicator lamp, alternator control, radiator fan control, intake air bypass valve
estimated values:
air fuel ratio (lambda), fuel flow, injector duty, injector flow rate, engaged gear

– configurable parameter alarm triggers (engine temperature too high etc.)

– configurable on-screen graphs

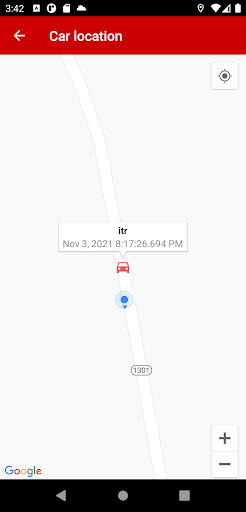

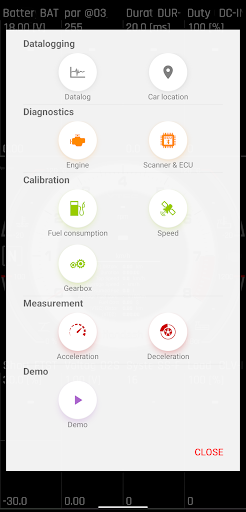

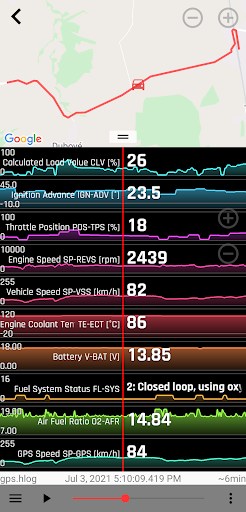

– datalogging tool – continuous recording of all parameters and car GPS position for detailed analysis, export to .csv file format

– engine diagnostics tool – read and clear DTC fault codes

– calibration tools – fuel consumption, vehicle speed, gearbox ratios

– car dynamics measurement tools – acceleration (0-100 kph, etc., 1/4 mile drag run), deceleration (100-0 kph, etc.)

– shift-light with audio-visual indication and individual gear shift point configuration

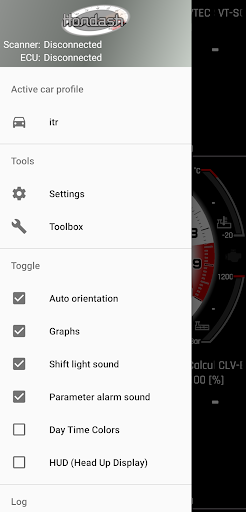

– Head Up Display (HUD) mode

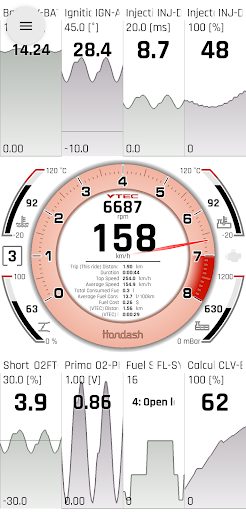

– daytime and nighttime color scheme

– support for metric and imperial units
